Conversion code can be used to change the color space
To transform the color from BGR to RGB cvtColor() function is used
fix_img = cv2.cvtColor(img, cv2.COLOR_BGR2RGB)
- The cvtColor function in OpenCV converts images from one color space to another.
- The name cvtColor is a shorthand for “convert color.”
Displaying the image in OpenCV
plt.imshow(fix_img)To transform the color from BGR to Grey
imgG = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)
plt.imshow(imgG, cmap='gray')
Loading the grey scale image in OpenCV
Converting color space of image at the time of reading
img_gray = cv2.imread("parrot.jpg",cv2.IMREAD_GRAYSCALE)
img_gray.shape
Good to Know
- cv2.IMREAD_GRAYSCALE is a flag used with the cv2.imread function in OpenCV to specify that an image should be read in grayscale mode.
- When this flag is used, OpenCV reads the image and converts it to a single-channel grayscale image immediately, instead of reading it in its original color format.
Finding max and min pixels in OpenCV
img_gray
The minimum value in the image
img_gray.min()The maximum value in the image
img_gray.max()
Displaying the images in OpenCV
The default color value that imshow() uses is virdis, which takes darker values and shows them as bluish and takes lighter values and shows them as yellowish green
plt.imshow(img_gray)Good to Know
To overcome this, use cmap
plt.imshow(img_gray,cmap='gray')Save the image in OpenCV

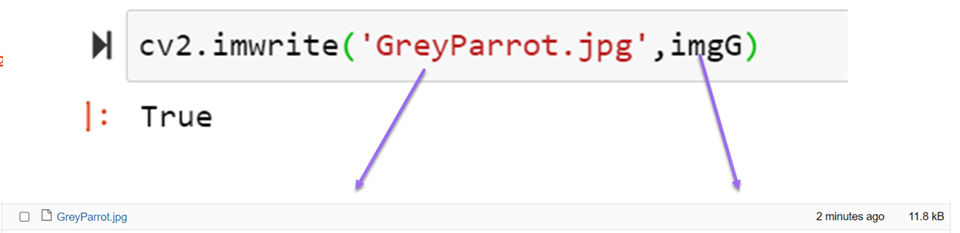

Save the image using imwrite( )
The input is the path of the image file and the image array
cv2.imwrite('GreyParrot.jpg',imgG)
Slice Operation to extract different channels
Slicing selects each row and column, the final index selects the color channel
Baboon_ = cv2.imread('Baboon.jpg')
blue, green, red = Baboon_[:,:,0],Baboon_[:,:,1],Baboon_[:,:,2]
plt.imshow(blue,cmap="gray")plt.imshow(green,cmap="gray")
plt.imshow(red,cmap="gray")
